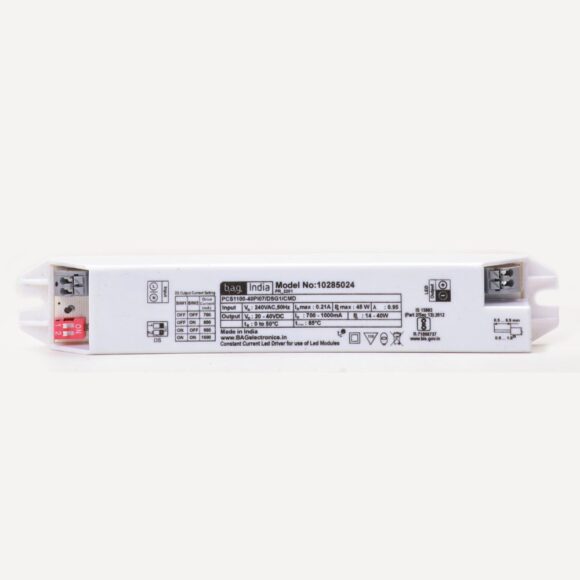

40W Linear Driver
- BAG’s Product Code – 10285024
- Variant Number – 10288706
- Description – LEDC BAG PCS1100-40/PI07/DSP/C10285024
- Max Output Wattage – 40
- Output VDC – 20-40
- Output Current – 700-1000
- Pf – 0.95
- Efficiency – 87%
Download Datasheet
- “Overvoltage Protection – 440VAC for 8 Hrs.
- Undervoltage & Overvoltage Cut off
- Surge Protection – 4KV
- Output Current accuracy – 5%
- THD<10%
- Thermal Foldback
- Multicurrent Selection using Dip Sw.
- Short Circuit, Overload & Open circuit Protection
- Life – 30,000 Hrs at Tc
- Fully Isolated Plastic casing
- Dimesion – 155x30x25mm(LxWxH)
- Warranty : upto 3 Year warranty
- Applications : Linear Lights & Panel Lights “
