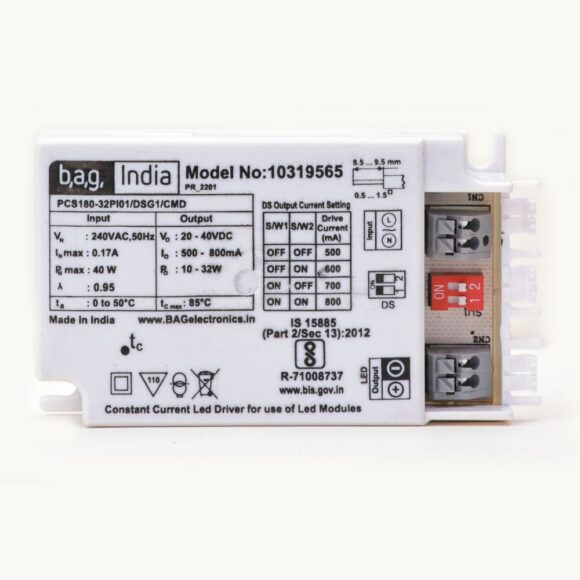

32W Square Driver(Geo Series)
- BAG’s Product Code – 10319565
- Variant Number – 10319566
- Description – LEDC BAG PCS180-32/PI01/DSP/C10319565
- Max Output Wattage – 40
- Output VDC – 28-40
- Output Current – 500-800
- Pf – 0.95
- Efficiency – 87%
Download Datasheet
- “Overvoltage Protection – 440VAC for 8 Hrs.
- Undervoltage & Overvoltage Cut off
- Surge Protection – 4KV
- Output Current accuracy – 5%
- THD<10%
- Thermal Foldback
- Multicurrent Selection using Dip Sw.
- Short Circuit, Overload & Open circuit Protection
- Life – 30,000 Hrs at Tc
- Fully Isolated Strain relief Plastic casing
- Dimesion – 95x54x25mm(LxWxH)
- Warranty : upto 3 Year warranty
- Applications : Downlights & Panel Lights “
