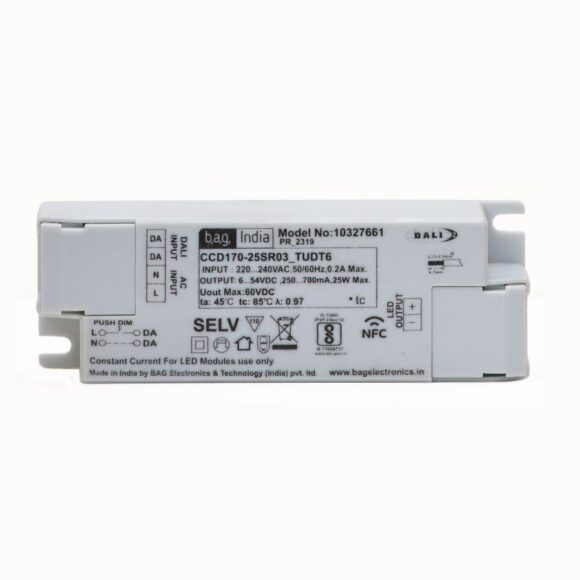

25w DALI-2 DT6 Dimmable Driver
- BAG’s Product Code – 10327661
- Description – CCD1070-25SR03/TUDT6/2319S
- Max Output Wattage -25W
- Output VDC – 6-58
- Output Current -250mA-700mA
- Pf – 0.97
- Efficiency – 0.8
Download Datasheet
- “Dimming range 0.01% to 100%
- Ouptput Current adjustment 250-700mA using NFC tool(Default Current 500mA)
- Output Current accuracy – 3%
- Dimming Interfacte – DALI Device Type 6 (DT6)
- Push Dim
- THD<10%
- Flicker Free Operation
- Overvoltage Protection upto 440VAC
- Short Circuit, Over Temp & Open circuit Protection
- Safety Standards – EN61347-1, EN61347-2-13,
- EMC Emission : En55015, EN61000-3-2, EN61000-3-3 ,
- EMC Immunity – En61547, EN61000-4-2,3,4,5,6,8,11
- full isolated plastic Strain relief Casing
- Dimension:120x41x28mm (L*W*H)
- Warranty : upto 5 Year warranty
- Applications : Downlights, Spotlights , Panel Lights “
