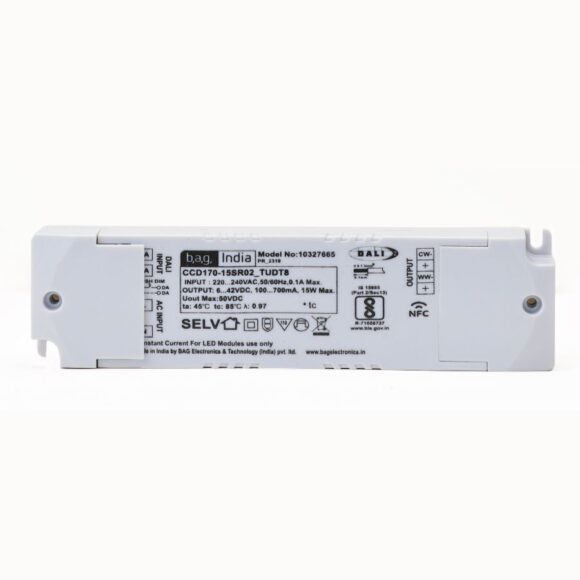

15w DALI-2 DT8 Dimmable Driver
- BAG’s Product Code – 10327665
- Description – CCD170-15SR02/TUDT8/2319S
- Max Output Wattage – 15W
- Output VDC – 6-42
- Output Current – 100mA-700mA
- Pf – 0.97
- Efficiency – 0.8
Download Datasheet
- “Dimming range 0.01% to 100%
- Ouptput Current CCT adjustment 100-700mA using NFC tool(Default Current 350mA)
- Output Current accuracy – 3%
- Dimming Interfacte – DALI Device Type 8 (DT8)
- Push Dim
- THD<10%
- Flicker Free Operation
- Overvoltage Protection upto 440VAC
- Short Circuit, Over Temp & Open circuit Protection
- Safety Standards – EN61347-1, EN61347-2-13,
- EMC Emission : En55015, EN61000-3-2, EN61000-3-3 ,
- EMC Immunity – En61547, EN61000-4-2,3,4,5,6,8,11
- full isolated plastic Strain relief Casing
- Dimension:135x35x20mm (L*W*H)
- Warranty : upto 5 Year warranty
- Applications : Downlights, Spotlights , Panel Lights “
