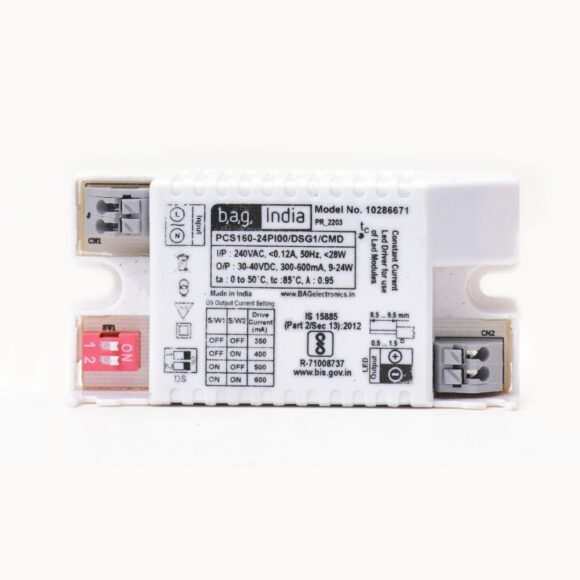

15w-24w 350/400/500/600mA Matchbox LED Driver
- BAG’s Product Code – 10286671
- Variant Number – 10288585
- Description – LEDC BAG PCS160-24/PI00/DSP/C10286671
- Max Output Wattage – 9-24
- Output VDC – 30-40
- Output Current – 300-600
- Pf – 0.95
- Efficiency – 85%
Download Datasheet
- “Overvoltage Protection – 380VAC for 8 Hrs.
- Surge Protection – 3KV
- Output Current accuracy – 5%
- THD<10%
- Multicurrent selection using Dip Switch
- Short Circuit, Overload & Open circuit Protection
- Life – 30,000 Hrs at Tc
- Dimesion – 80x40x22mm(LxWxH)
- Warranty : upto 3 Year warranty
- Applications : Downlights, Linear Lights & Panel Lights “
