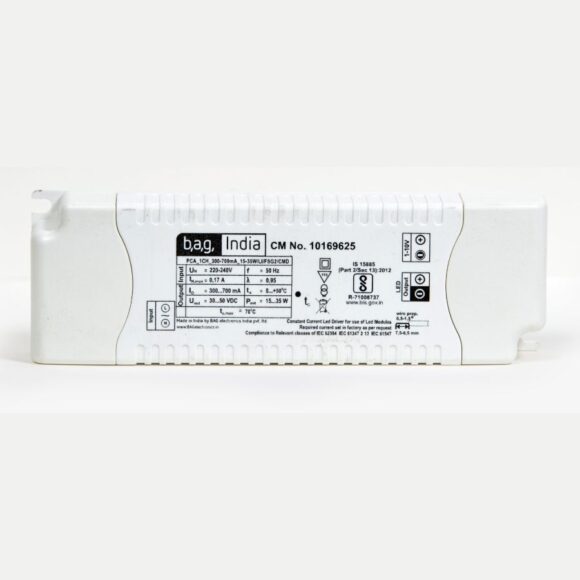

10w-50w Analog(1-10V) Dimmable Driver
- BAG’s Product Code – 10169625
- Variant Number – 10177833
- Description – LEDC BAG PCA1100-50LI/FS/CM-10169625
- Max Output Wattage – 50W
- Output VDC – 25-50
- Output Current – 1000mA
- Pf – 0.95
- Efficiency – 0.85
Download Datasheet
- “Analog(1-10V) Dimmable LED Driver
- Dimming from Conventional 1-10V Dimmer,
- can be programmed with fixed or variable resistor 15-100%
- Dimming Range – 15-100%
- Output Current accuracy – 5%
- THD<10%
- Overvoltage Protection upto 370VAC
- Short Circuit, Overload & Open circuit Protection
- EN61347-1, EN61347-2-13, EN 62 384, EN 61 547 , IEC 60068-2-6 , IEC 60068-2-27 , IEC 60068-2-29
- Fully Isolated Strain relief Plastic casing
- Dimension 140x45x26mm (L*W*H)
- Warranty : upto 5 Year warranty
- Applications : Downlights , Linear Lights & Panel Lights “
