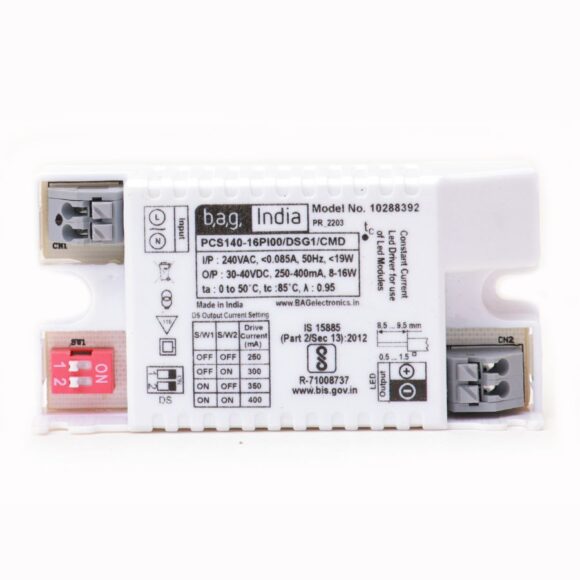

10w-17w 250/300/350/400mA Matchbox LED Driver
- BAG’s Product Code – 10288392
- Variant Number -10288589
- Description – LEDC BAG PCS140-16/PI00/DS/C10288392
- Max Output Wattage – 8-16
- Output VDC – 30-40
- Output Current – 250-400
- Pf – 0.95
- Efficiency – 85%
Download Datasheet
- “Overvoltage Protection – 380VAC for 8 Hrs.
- Surge Protection – 3KV
- Output Current accuracy – 5%
- THD<15%
- Multicurrent selection using Dip Switch
- Short Circuit, Overload & Open circuit Protection
- Life – 30,000 Hrs at Tc
- Dimesion – 80x40x22mm(LxWxH)
- Warranty : upto 3 Year warranty
- Applications : Downlights, Linear Lights & Panel Lights “
